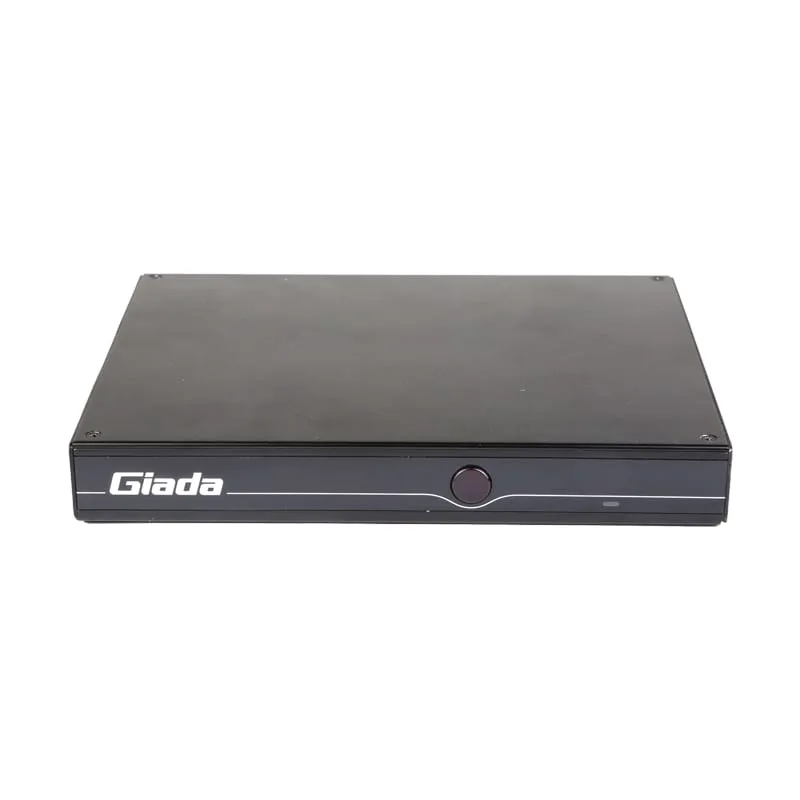

Giada D68 I3 8145U 2xDDR4 2400Mhz

The Giada D68 i3 Whiskey Lake Book-Size Signage Player is the company’s latest book-sized PC. An ideal signage player solution that is perfect for applications in hospitality, retail, commercial, service and advertising roles. This device brings organizations all the performance and efficiency of Intel’s Whiskey Lake CPUs and boasts a Core i3-8145U processor. The three independent output ports offer 4K quality to multiple displays.

Giada has designed the D68 to be ideal for touch screen display solutions.

Features:

• Powered by an Intel i3 Whiskey Lake CPU
• Three video-out ports
• 4K Video display
• Five USB3.1 ports
• Ideal for touch screen display solutions
• SIM Card slot

Specifications:

• Processor:
  • CPU: Intel Core i3-8145U
  • Frequency: 1.60GHz (Up to 3.90GHz)
  • BIOS: AMI Source Code
  • Chipset: SOC
• Memory:
  • Type: DDR4-2400MHz
  • Socket: 2x SO-DIMM
  • Max Size: 32GB
• Graphics:
  • GPU: Intel® UHD Graphics 620
  • Graphic Engine: Direct3D 2015, OpenGL 4.5, OpenCL 2.1

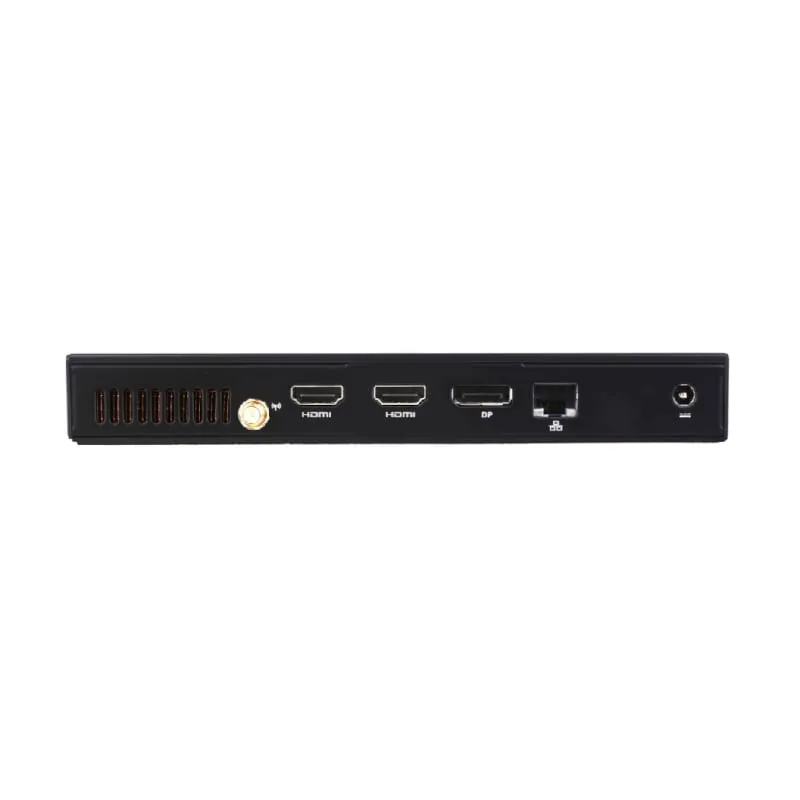

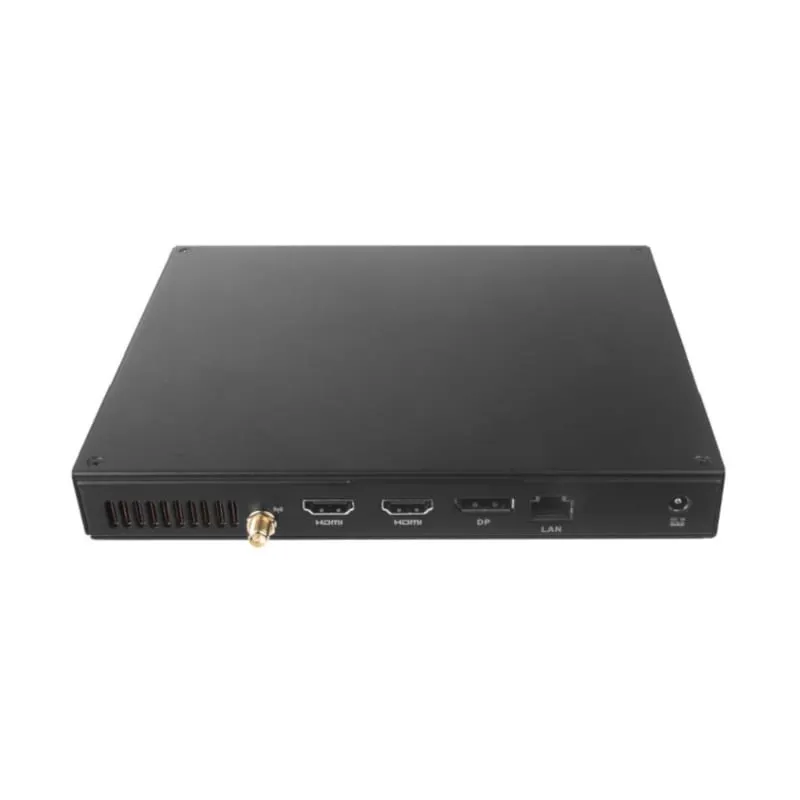

• Display:
  • DP Port: DP (Max.4096 x 2304 @60Hz)
  • HDMI Port 1: HDMI (Max.4096×2304 @60Hz)
  • HDMI Port 2: HDMI (Max.4096×2304 @24Hz)
• Network:
  • Controller: Realtek 8111H Gigabit Ethernet
  • Interface: RJ45

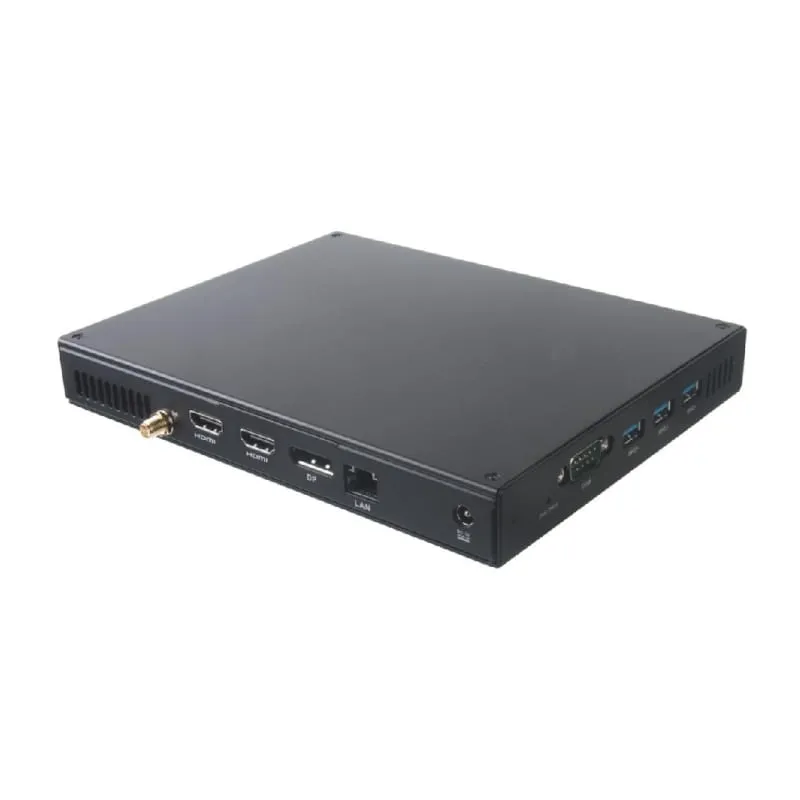

• I/O:
  • USB: 5x USB 3.1
  • Serial Port: 1x RS232
  • Audio: 1x AUDIO-OUT | 1x MIC-IN
  • Mini-PCIe: 1x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
  • M.2: 1x M.2(2230) for WiFi
  • SIM: 1x SIM Slot
• Storage:
  • mSATA: 1x Full-size mSATA
  • M.2: 1x M.2(2242/2280) for SSD
• JAHC Tech:
  • WatchDog Timer: 0~255 Second Time Out Support
  • Auto Power On: Power Activated Automatically Start
  • Remote Control : IR Controller for Power On
  • RTC: Setup Independently Every day / Week as a Cycle
  • Wake on LAN: Yes
• Power:
  • Power Type: DC-IN
  • Input Voltage: 19V / 3.42A
• Environment:
  • Operating Temperature: 0℃ ~ 40℃ at 0.7m/s Air Flow
  • Relative Humidity: 95% @40℃ (non-condensing)
• Mounting: Desk/Wall Mounting and VESA Mounting
• Supported Operation System: Windows 10 (64-Bit) | Linux
• Certification: CE, FCC Class B, CCC
• Dimensions: 18.96 x 14.83 x 2.6 cm

What’s in The Box:

• Giada D68 i3 Whiskey Lake Book-Size Signage Player x1
• Drive Disk x1
• AC Power Cable x1
• AC Power Adapter x1
• User Manual x1
