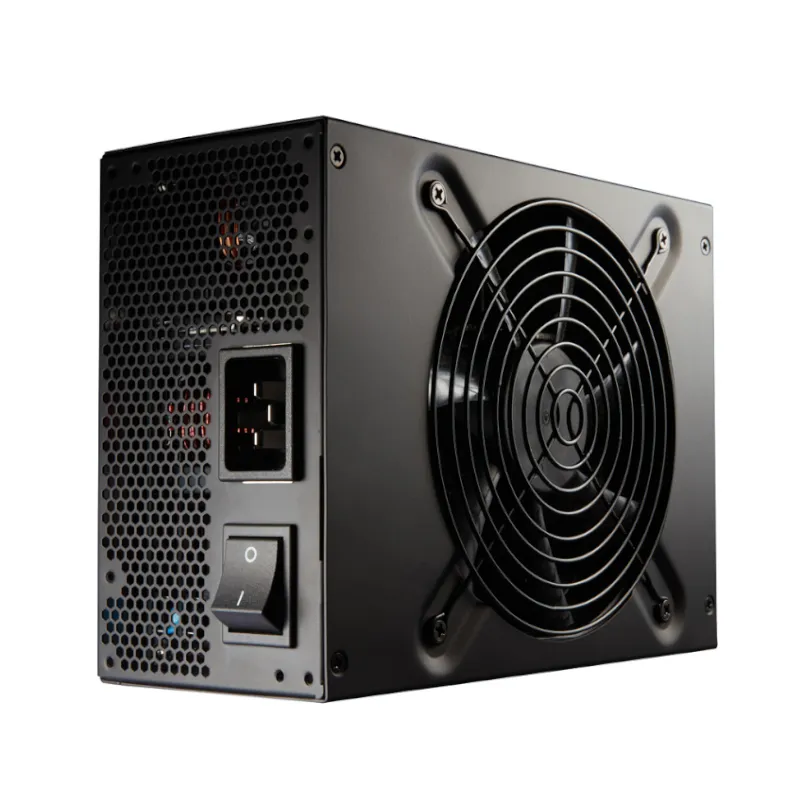

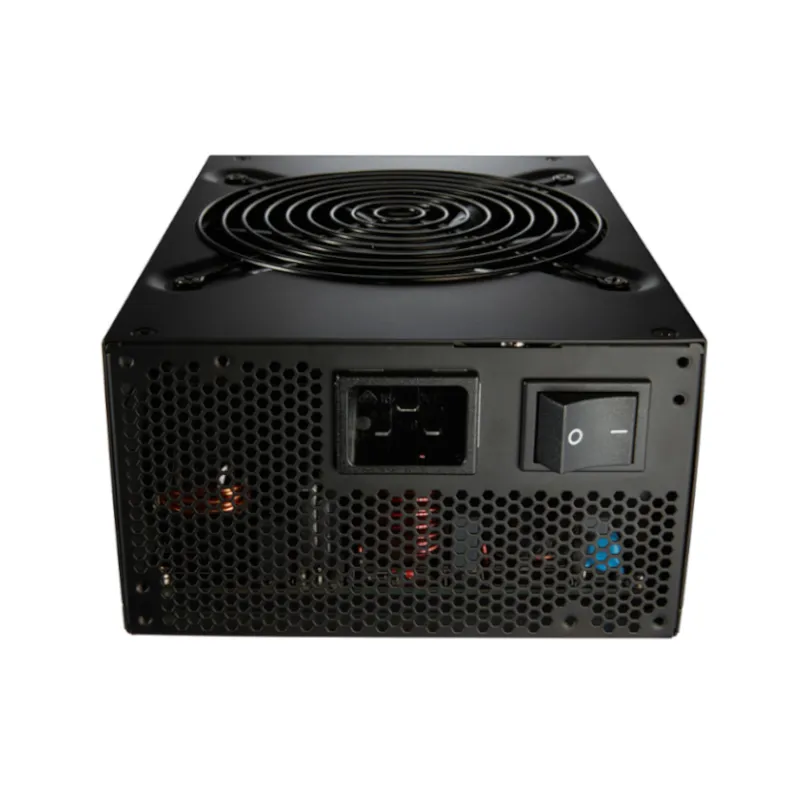

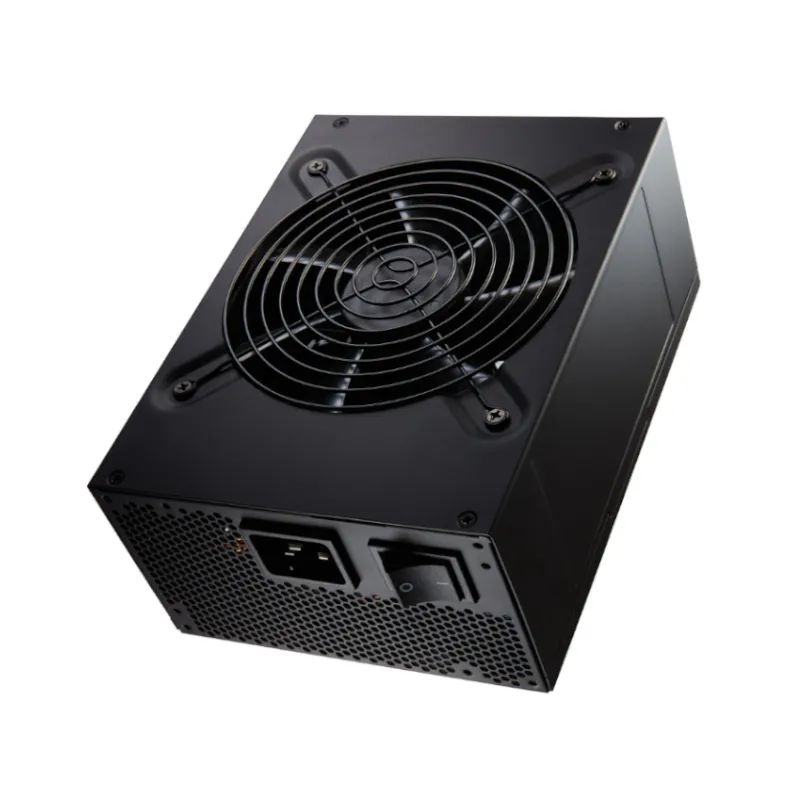

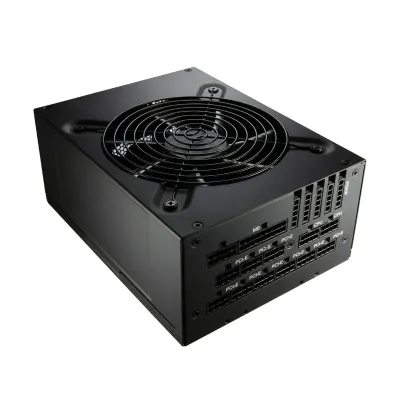

FSP CANNON 2000W Modular PSU

With the upcoming 5G, IoT (internet of things) and blockchain technology’s rapid development, the demand for high wattage and stable power supply is an inevitable trend. The FSP Cannon 2000 has been designed to provide stable output for your system, it is also equipped with 18 sets of PCI-E 6+2 PIN slots to run as a mining rig. It is built-in with a 135mm FDB fan for increased airflow at rigorous mining environments, and a Japanese capacitor for high stability and efficiency. The FSP Cannon 2000 is a premium choice among high-efficiency PSUs for your system. Total Power: 2000W @200-240Vac, 1500W @115-200Vac, 1200W @100-115Vac.

FEATURES:

• Complies with ATX12 v2.4 & EPS12 v2.92
• Efficiency ≧ 92% @ typical Load
• Active PFC ≧ 0.9
• Hold up time > 17ms @ full load
• Full modular design with all black round cable
• Supports dual sets of CPU slots
• Provides 18pcs PCI-e for high-load system
• +12V single-rail design
• 5V & 3.3V rail with DC to DC Design
• Intelligent fan control with 135mm fan
• Standby wattage < 0.5W
• Complete protections: OVP, OCP, UVP, SCP, OPP, OTP

SPECIFICATIONS:

• Rated Output Power:
  • 2000W @ 200-240Vac
  • 1500W @ 115-200Vac
  • 1200W @ 100-115Vac
• Form Factor: ATX/EPS
• Input Voltage: 100-240Vac
• Input Current: 15-12A
• Input Frequency: 50-60Hz
• PFC: Active PFC > 0.9
• Efficiency: 92% @ typical load
• Fan Type: FDB Fan, 135mm
• Protection: OCP/OVP/OPP/SCP/UVP/OTP
• Cable Connections:
  • ATX 20+4 x 1
  • 4+4 PIN x 2
  • PCI-E 6+2 x 18
  • SATA x 14
  • Molex (PERIPHERAL) x 5
  • Floppy x 1
• Dimensions: 20 x 15 x 8.6 cm
• Weight: 2640g

WHAT’S IN THE BOX:

• FSP Cannon 2000W ATX/EPS Modular Power Supply – Black x1
• Modular cables pack x1
• Power cable x1
